Introduction:

This Volumetric Piston Fillers are widely used by industries in the Food & Beverage, Personal Care, Cosmetics, Agricultural, Pharmaceutical, Animal Care and Chemical fields.

Specification:

Power voltage: 220/110V 50/60HZ

Filling amount: 100-1000ml

Filling head: double heads

Speed: Approximate Speed 40-80pcs/min (depending on operator speed, product density, draw length, a fill speed, among others) 600ml 5-6pcs/min

Accurate :≤ ±1 %

Applications: Suitable to fill low to high-density liquids (0 10,000 cps)

Operation: Control Panel

Semi Auto/Continuous Operation Selector Switch

All Parts in Contact with Product are Food Grade (SS 304/316)

Stainless Steel Construction

Rugged Rotary Valve System Design

Silica gel O-ring System(cam bear 200 Celsius degree)

Piston Feed Speed Adjustment

No-drip Option Included and Installed

Easy to Clean and Maintain

Sanitary Stainless Steel Quick Disconnect Fittings

Easy to Operate

Quick Connect/Disconnect Pneumatic Fittings.

Pneumatic Operation

With the Air pressure gauge,

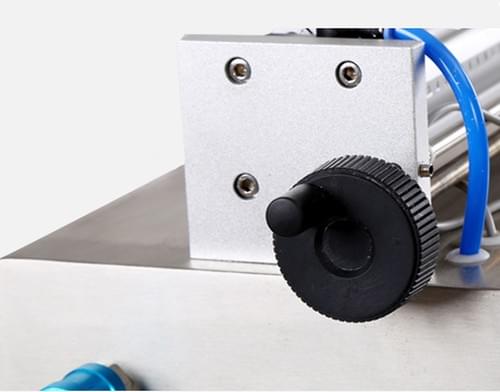

Adjustment Piston Volume Adjust

Air Intake Pressure

Air Consumption 3-5KG 0.4-0.6MPa
